Pack of 4 - U-Bolt Clamp - 5 Inch
Pack of 4 - U-Bolt Clamp - 5 Inch
99 in stock
Item specifics
Item description

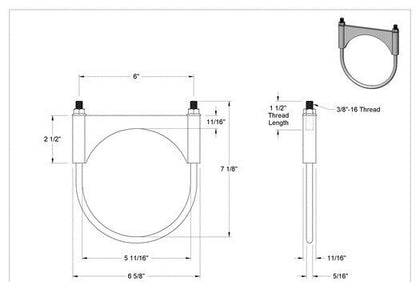

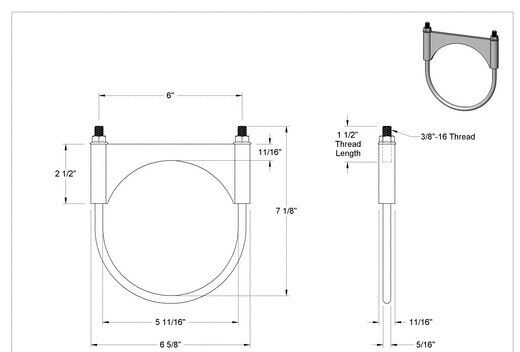

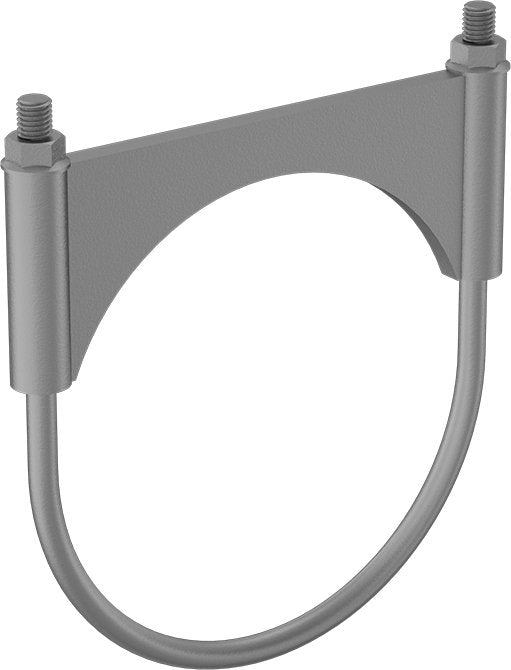

5 Inch U-Bolts, Also known as muffler clamps, these U-bolts have a rounded mounting plate that fully surrounds pipe, conduit, and tubing for a secure fit. Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles.
Mount Type - Threaded
Thread Size - 3/8"-16
ID - Inch 5 11/16" - Metric 144 mm
For Pipe Size - 5 Inch
For Rigid Conduit Trade Size - 5 Inch
Height - 7 1/8"
Thread Length - 1 1/2"
Capacity - Not Rated
Material - Steel
Center -to-Center - 6"
Leg Diameter - 3/8"
Includes Mounting Plate - Yes
Mounting Plate Material - Steel
Length - 6 11/16"
Width - 3/4"
Thickness - 11/16"
Number of Nuts Included - 2
Nut Style - Serrated-Flange Locknut
Material - Steel
REACH REACH (EC 1907/2006) (01/17/2022, 223 SVHC) - Compliant
Country of Origin - United States
